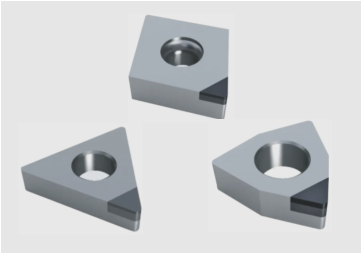

PCD Inserts | ISO Item Number | IC | S | D1 | R | Rake Angle |
CCGT
| CCGT060204 | 6.35 | 2.38 | 2.8 | 0.2 | 7° |
CCGT060208 | 6.35 | 2.38 | 2.8 | 0.4 | 7° | |
CCGT09T304 | 9.525 | 3.97 | 4.4 | 0.2 | 7° | |
CCGT09T308 | 9.525 | 3.97 | 4.4 | 0.4 | 7° | |
CNGA
| CNGA120404 | 12.7 | 4.76 | 5.16 | 0.4 | 10° |
CNGA120408 | 12.7 | 4.76 | 5.16 | 0.8 | 10° | |
CNGA120412 | 12.7 | 4.76 | 5.16 | 1.2 | 10° | |
DNGA
| DNGA150404 | 12.7 | 4.76 | 0.4 | 5.16 | 10° |
DNGA150408 | 12.7 | 4.76 | 0.8 | 5.16 | 10° | |
DNGA150412 | 12.7 | 4.76 | 1.2 | 5.16 | 10° | |
DNGA150604 | 12.7 | 6.35 | 0.4 | 5.16 | 10° | |
DNGA150608 | 12.7 | 6.35 | 0.5 | 5.16 | 10° | |
DNGA150612 | 12.7 | 6.35 | 1.2 | 5.16 | 10° | |
DCGT
| DCGT070204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
DCGT070208 | 6.35 | 3.18 | 2.8 | 0.8 | 7° | |
DCGT11T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° | |
DCGT11T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° | |
SNGA
| SNGA120404 | 12.7 | 4.76 | 5.16 | 0.4 | 10° |
SNGA120408 | 12.7 | 4.76 | 5.16 | 0.8 | 10° | |
SNGA120412 | 12.7 | 4.76 | 5.16 | 1.2 | 10° | |
SCGT
| SCGT09T304 | 9.525 | 3.97 | 4.4 | 0..4 | 7° |
SCGT09T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° | |
SCGT09T312 | 9.525 | 3.97 | 4.4 | 0..4 | 7° | |
TNGA
| TNGA160404 | 9.525 | 4.76 | 3.81 | 0.4 | 10° |
TNGA160408 | 9.525 | 4.76 | 3.81 | 0.8 | 10° | |
TNGA160412 | 9.525 | 4.76 | 3.81 | 1.2 | 10° | |
TCGT
| TCGT090204 | 5.56 | 2.38 | 2.5 | 0.4 | 7° |
TCGT090208 | 5.56 | 2.38 | 2.5 | 0.8 | 7° | |
TCGT110204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° | |
TCGT110208 | 6.35 | 2.38 | 2.8 | 0.8 | 7° | |
TCGT16T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° | |
TCGT16T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° | |
TPGT
| TPGT090204 | 5.56 | 2.38 | 2.5 | 0.4 | 7° |
TPGT090208 | 5.56 | 2.38 | 2.5 | 0.8 | 7° | |
TPGT110204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° | |
TPGT110208 | 6.35 | 2.38 | 2.8 | 0.8 | 7° | |
TPGT16T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° | |
TPGT16T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° |
