CV joints (Constant-velocity joints) allow a drive shaft to transmit power through a variable angle, at constant rotational speed, without an appreciable increase in friction or play.CV joints are mainly composed of outer race, inner race, ball cage, and ball, which have been machined by grinding process, but recently PCBN hard machining process are replacing the grinding process.PCBN tools are suitable for this kind of hard machining.

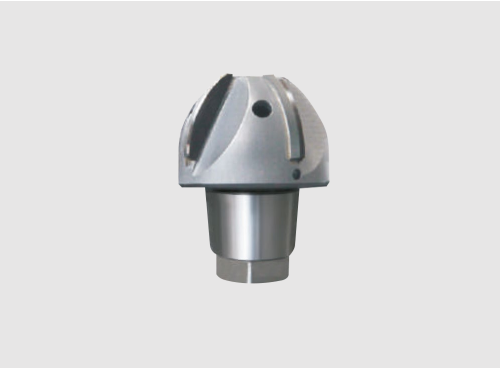

MeRui provides optimum designs and PCBN solutions with high technology in hard machining. Adopting PCBN high speed hard and dry cutting processing technology, the ball track which is on inner/outer-star wheel can be formed in one time.
Type | Diameter of Steel Ball（mm） | Flute (Z) | Body Type（Steel） |
TM-D17.4625-HFS12 | Φ17.4625 | 4 | HFS12 |
TM-D19.05-HFS12 | Φ19.05 | 4 | HFS12 |
TM-D20.6375-HFS14 | Φ20.6375 | 4 | HFS14 |
